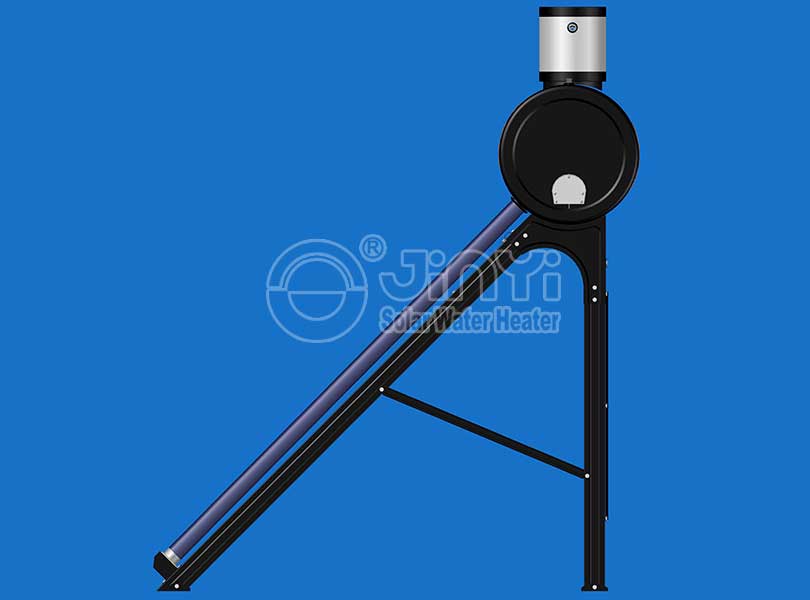

Non Pressurized Solar Water Heater Right View
Non-pressurized Solar Water Heater Northeast

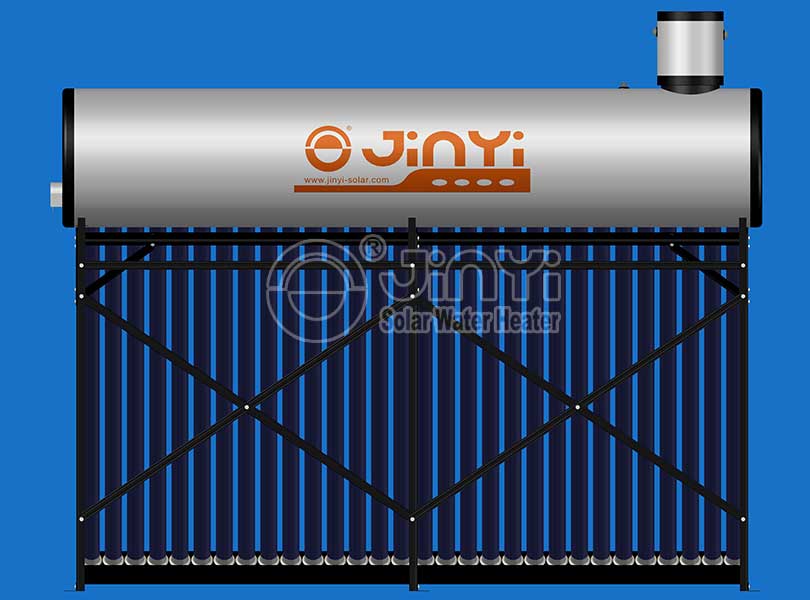

Non-Pressure Solar Water Heater Rear View
Non-Pressure Solar Water Heater Northwest
Non-Pressure Solar Water Heater Left View
Non-pressurized Solar Water Heater Anatomy
Non-pressurized Solar Water Heater Southwest
Non-pressurized Solar Water Heater Front View
Non Pressurized Solar Water Heater Southeast
Non Pressurized Solar Water Heater Right View
Non-pressurized Solar Water Heater Northeast
Non-Pressure Solar Water Heater Rear View
Non-Pressure Solar Water Heater Northwest
Non-Pressure Solar Water Heater Left View
Non-pressurized Solar Water Heater Anatomy

Galvanized Steel Solar Water Heater

Introduction:
The non-pressurized solar water heater (solar geyser) is based on the natural circulation thermosiphon phenomenon. It’s the most cost-effectiveness and environmentally friendly way to harness solar energy for hot water applications, which is unsurpassed by any other solar thermal products, for its most high efficiency, low cost and easy installation.
Galvanized steel non-pressure solar water heater characteristic:
1. Adopt most economic material (outer tank and support).
2. Most reliable, cost saving, efficient hot water heating solution.
3. Simple structure, easy installation, labor cost saving.
4. Automatic operation with intelligent controller.
5. Low maintenance cost.

CE  ISO 2015  IAF Logo  CNAS Logo

Galvanized steel non-pressure solar water heater specification
1. Inner tank: Stainless steel SS304-2B / SS316L.
2. Outer tank: Galvanized steel / PVDF.
3. Insulation layer: Polyurethane foam, 41 kg/ high density.
4. Support: Painted galvanized steel.
5. Vacuum tube: Borosilicate glass 3.3, ALN/AIN-SS/CU coating, Φ58×1800mm.
6. Capacity: 50L-360L.

How the non-pressure solar water heater works:


Installation Ways:
Non-pressurized Solar Water Heaters Schematic diagram controller assistant

Parameter table:
Model Vacuum tube System capacity(L) Person No. Loading Qty. (set)
Dia. / Len. (mm) Qty. (pcs) 20GP 40GP 40HQ
JNG-10 58 1800 10 100 2 73 150 175
JNG-12 58 1800 12 120 2 68 142 160
JNG-15 58 1800 15 150 3 52 112 130
JNG-18 58 1800 18 180 3 48 96 115
JNG-20 58 1800 20 200 4 42 88 98
JNG-24 58 1800 24 240 5 35 73 86
JNG-30 58 1800 30 300 6 28 62 68
JNG-36 58 1800 36 360 7 24 48 60

Optional Accessories:
Assistant Tank
Assistant tank
- Material & Color same as solar tank
- Capacity: 5L - 20L
  Magnesium Rod
Magnesium rod
- Used for solar tank protection
Item No. Size Quantity Item No. Size Quantity
821 820 004 3/4 inch 1 unit 812 801 001 Φ20×230mm 1 unit

Electric Heating Element 1500W
Electric heater
- Material: Stainless steel
- Connection size:  Φ 47mm
  Incoloy 800 Electric Heater
Electric heater
- Material: Incoloy 800
- Super anti-corrosion& heat
conduction, dry-heat resistant
- Connection size:  1 inch
Item No. Power Quantity Item No. Power Quantity
812 900 193 1500W 1 unit 812 900 191 1500W, 2500W 1 unit

Thermostat Electric Heater
Thermostat electric heater
- Material: Copper /  Incoloy 800
- Regulating temperature: 30-85℃
- Connection size:  1.25 inch
  Thermostatic Mixing Valve
Thermostatic mixing valve
- Material: Nickle plated brass
- Cold water temperature: 5-29℃
- Hot water temperature: 50-95℃
- Regulating temperature: 35-55℃
- Working pressure: 0.03-1 Mpa
Item No. Power Quantity Item No. Size Quantity
812 900 192 1500W, 2500W 1 unit 812 007 052 3/4 inch 1 unit

SR501 Solar Controller
Controller (luxury version)
- Used for non-pressure solar heater
- Automatic operation
- Intelligent cold water loading
- Intelligent control electric heater
  TK-8A Intelligent Controller
Controller (economic version)
- Used for non-pressure solar heater
- Automatic operation
- Intelligent cold water loading
- Intelligent control electric heater
Item No. Voltage Quantity Item No. Voltage Quantity
812 007 052 110V/ 220V 1 unit 812 007 008 110V/ 220V 1 unit
