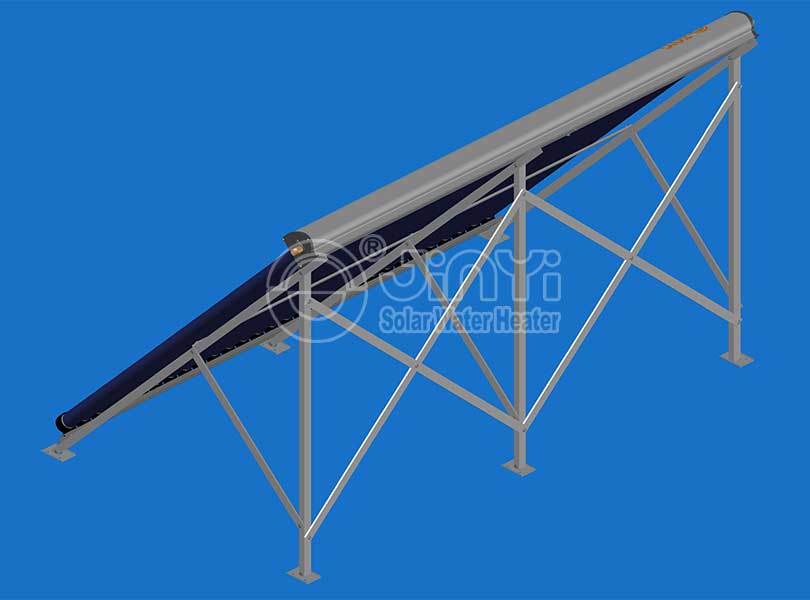

Solar Collector Northeast
Solar Collector Northwest
Solar Collector Rear View
Solar Collector Left View
Heat Pipe Solar Collector Right View
Heat Pipe Solar Collector Southeast
Heat Pipe Solar Collector Southwest
Heat Pipe Solar Collector Front View
Solar Collector Northeast
Solar Collector Northwest
Solar Collector Rear View
Solar Collector Left View

Heat Pipe Solar Collector(JMC)

Heat pipe solar collector working principle:
The heat pipe solar collector always connected with existing water heating device. The selective absorber coating on the inner cover of vacuum tubes absorb solar energy, then convert solar energy into thermal energy and transfer thermal energy to heat pipe by aluminum fin. The heated liquid inside heat pipe change into vapor which rises to the top condenser, then thermal energy heat transfer liquid pass through heat exchanger and the cooled vapor becomes liquid, returning to the base of heat pipe.
The thermal energy conducts to transfer liquid via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

The characteristic of heat pipe solar collectors:
● Solar Keymark(EN12975) certified,  click here.
● Higher efficiency η0 = 0.769 (aperture area).
● Heat pipe with 24mm diameter condenser, more exchanger area, rapid heat transferring, higher efficiency.
● Low temperature resistance, heat pipe freeze protected, even can be work under -50℃ ambient, so can be used all year round
   in cold climate area.
● Passive tracks the sun: the round absorber surface of vacuum tubes passively track the sun throughout the day.
● Available in 10, 12, 15, 18, 20, 22, 24, 25 and 30 tubes model, flexible combination.
● No water inside vacuum tube, so vacuum tube will not break in the winter frozen weather.
● In the event of a tube damaged, the whole system will still keep working, just remove and replace, low cost.
● Combined with building perfectly, ideal for slope roof or flat roof installation.
● It can be combined with existing water heating device easily.
● Tube can be replaced without draining solar fluid;
● Significant advantages over flat plate.
● Low maintenance!

Heat Pipe Solar Collector Main Features Overview,  click here.

Solar Keymark SP Logo RISE Logo Intertek Logo CE ISO-2015 Logo IAF Logo CNAS Logo

Solar Collector Key Components Heat Pipe Vacuum Tube Working Principle
Solar Collector Key Components Heat Pipe Vacuum Tube Working Principle
For more details about Solar Collector Key Components (Three-target Vcuum Tube, Heat Pipe, Heat Transfer Fin, Copper Header Pipe, Rock Wool Insulation Layer, Manifold Casing, Frame), please click here.

Heat pipe solar collector specification:
1. Vacuum tube: Borosilicate glass 3.3, ALN/AIN-SS/CU coating, Φ58×1800mm.
2. Heat pipe condenser: Φ24mm red copper.
3. Heat pipe: Φ8mm red copper.
4. Heat transfer fin: Integrated aluminium fin.
5. Manifold casing: Aluminium alloy(Color: silver and black).
6. Header pipe: Φ38mm red copper.
7. Inlet/outlet: Φ22mm(3/4 and 1inch).
8. Insulation layer: Compressed rock wool.
9. Frame: Aluminium alloy.
10. Working pressure: 0.6MPa.
11. Max. working pressure: 1.2MPa.
12. Ambient temperature: ≥-50℃.

Solar Collector Thermal Performance Test Tm-Ta Global Irradiance G
G=400W/m2 G=700W/m2 G=1000W/m2
0k 880W 1541W 2180W
10k 839W 1499W 2141W
30k 730W 1390W 2021W
50k 587W 1247W 1847W

Heat pipe solar collector application:
1) Domestic water heating, such as shower, kitchen washing.etc
2) Room heating, such as under floor and radiator heating.
3) Old heating equipment/system retrofit;
4) Large scale commercial solar water heating system, such as hotel, apartment, school, hospital.etc

Heat Pipe Evacuated Tube Sun Morning Midday Afternoon Incident Angle
Reference area Aperture area
ή0(-) 0.769
a1(W/m2K) 1.05
a2(W/m2K) 0.026

Parameter table:
Model Heat pipe vacuum tube Condenser (mm) Power output (W) L/W/H (mm) Loading Qty. (set)
Dia. (mm) Len. (mm) Qty. (pcs)  20GP 40GP 40HQ
JMC-5818-10 58 1800 10 Φ24 727 1960 x 890 x 160 162 330 378
JMC-5818-12 58 1800 12 Φ24 872 1960 x 1040 x 160 142 292 340
JMC-5818-15 58 1800 15 Φ24 1090 1960 x 1235 x 160 128 264 306
JMC-5818-18 58 1800 18 Φ24 1308 1960 x 1490 x 160 104 214 248
JMC-5818-20 58 1800 20 Φ24 1454 1960 x 1640 x 160 98 202 234
JMC-5818-22 58 1800 22 Φ24 1599 1960 x 1790 x 160 91 188 218
JMC-5818-24 58 1800 24 Φ24 1744 1960 x 1940 x 160 86 178 206
JMC-5818-25 58 1800 25 Φ24 1817 1960 x 2015 x 160 84 174 202
JMC-5818-30 58 1800 30 Φ24 2180 1960 x 2390 x 160 73 150 175
